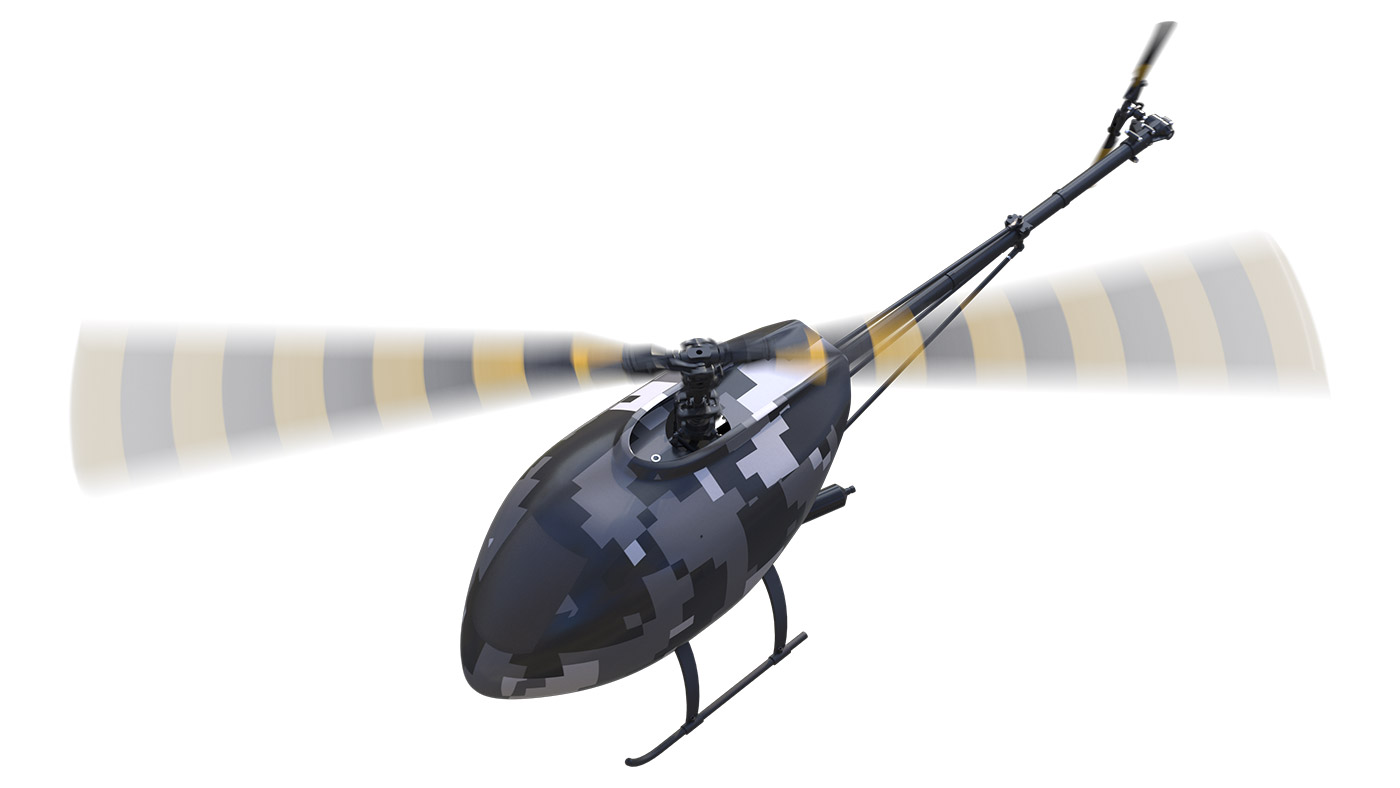

The SMRPC is a compact rotary-wing UAS designed as a flexible payload carrier for observation, logistics, survey, ISR and utility missions. It takes off and lands vertically (VTOL), uses an onboard autopilot and datalink to a ground station, and can carry modular sensors and cargo packages, such as EO/IR cameras, laser rangefinders, LIDAR, and underslung payloads for rapid disaster response or medical resupply.
Vertical takeoff and landing powered by a 300cc engine deliver 3-hour endurance and 100 km range.
Carries EO/IR sensors, laser rangefinders, or slung payloads for tactical and humanitarian missions.
Digital autopilot with waypoint navigation ensures precise control and safe, stable recovery.

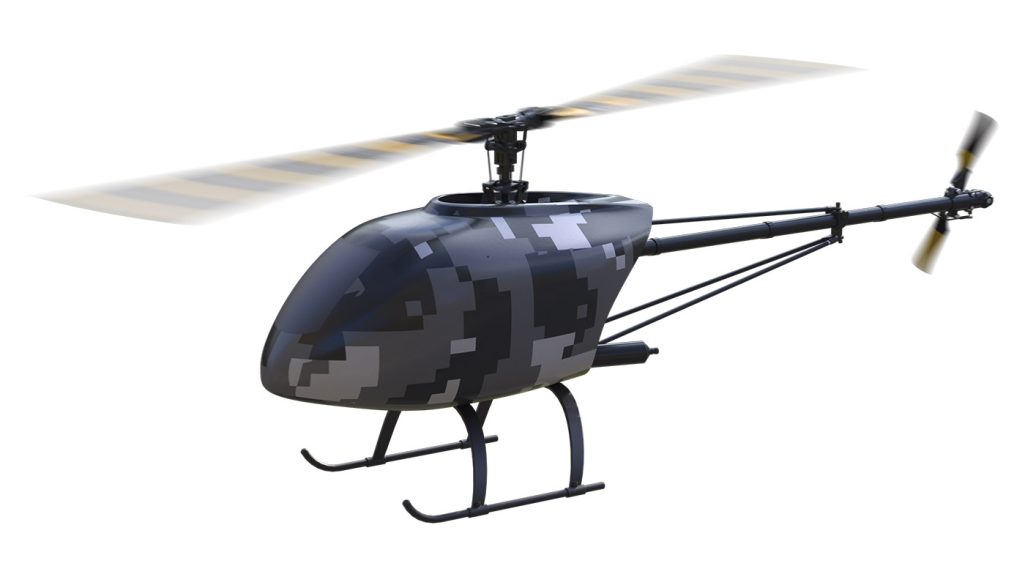

Rotary-wing UAV designed for reconnaissance, logistics, and surveillance across defense and disaster missions.

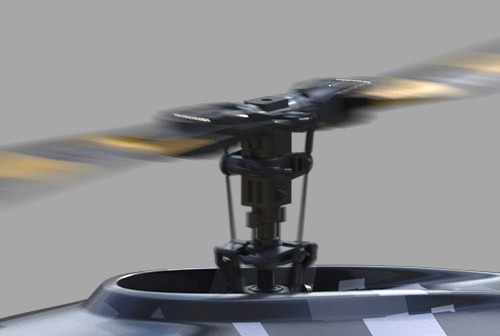

The main rotor delivers the vertical thrust needed for stable takeoff, hover, and landing. With a diameter of 3.65 meters, it enables the UAV to lift over 100 kg of total weight, ensuring reliable performance even with heavy sensor or cargo loads.
Built with advanced composite materials, the UAV's frame balances strength with minimal weight. This enhances fuel efficiency, endurance, and maneuverability without compromising durability.

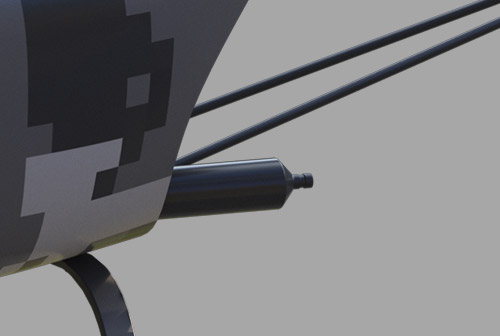

Located at the bottom of the fuselage, this mechanism allows for secure attachment and quick deployment of slung payload; ideal for logistics, medical supply drops, or emergency response missions.
Powered by a reliable 300cc gasoline engine, the propulsion system ensures long endurance flights of up to 3 hours, supporting missions that require extended range and high payload capacity.
The forward section houses the flight controller, GPS Module, and mission-specific sensors such as EO/IR camera, enabling autonomous navigation, target tracking, and real-time video telemetry.
Technical Specification |
|
|---|---|
|
Role |
Multi-role payload carrier |
|
Type |
Rotary Wing UAS |
|
Length |
13.80 ft. (4.20m) |
|
Main Rotor Diameter |
11.97 ft. (3.65m) |
|
Takeoff Weight (MAX) |
242.5 lbs. (110 kg) |
|
Range |
62.13 mi (100 km) |
|
Speed Range |
43.96 – 62.13 mi/hr. (70 – 100 km/hr.) |
|
Cruise Speed |
37.28 mi/hr. (60 km/hr.) |
|
Launch |
VTOL |
|
Power Plant |
300cc Gasoline Engine |
|
Endurance |
3 hrs. (20L tank) |
|
Recovery |
Failsafe autorotation in engine-out scenarios |
|
Altitude Ceiling |
10,000 ft. (3,048m) |
|
Stabilization |
Integrated Flight Control System (FCS) with IMU |
|
Tracking & Telemetry |
Video, GPS, and Data link Telemetry with Tracking up to 50 km |
|
Typical Payloads |
EO/IR Payloads, Laser Range Finder, Slung payloads up to 40km for disaster response & medical aid logistics |
We design, build, integrate, and maintain naval vessels for multiple missions: from border protection to lower-intensity threat missions and high-demand or high-threat law enforcement scenarios.
Expanding the Reach of Intelligent Operations

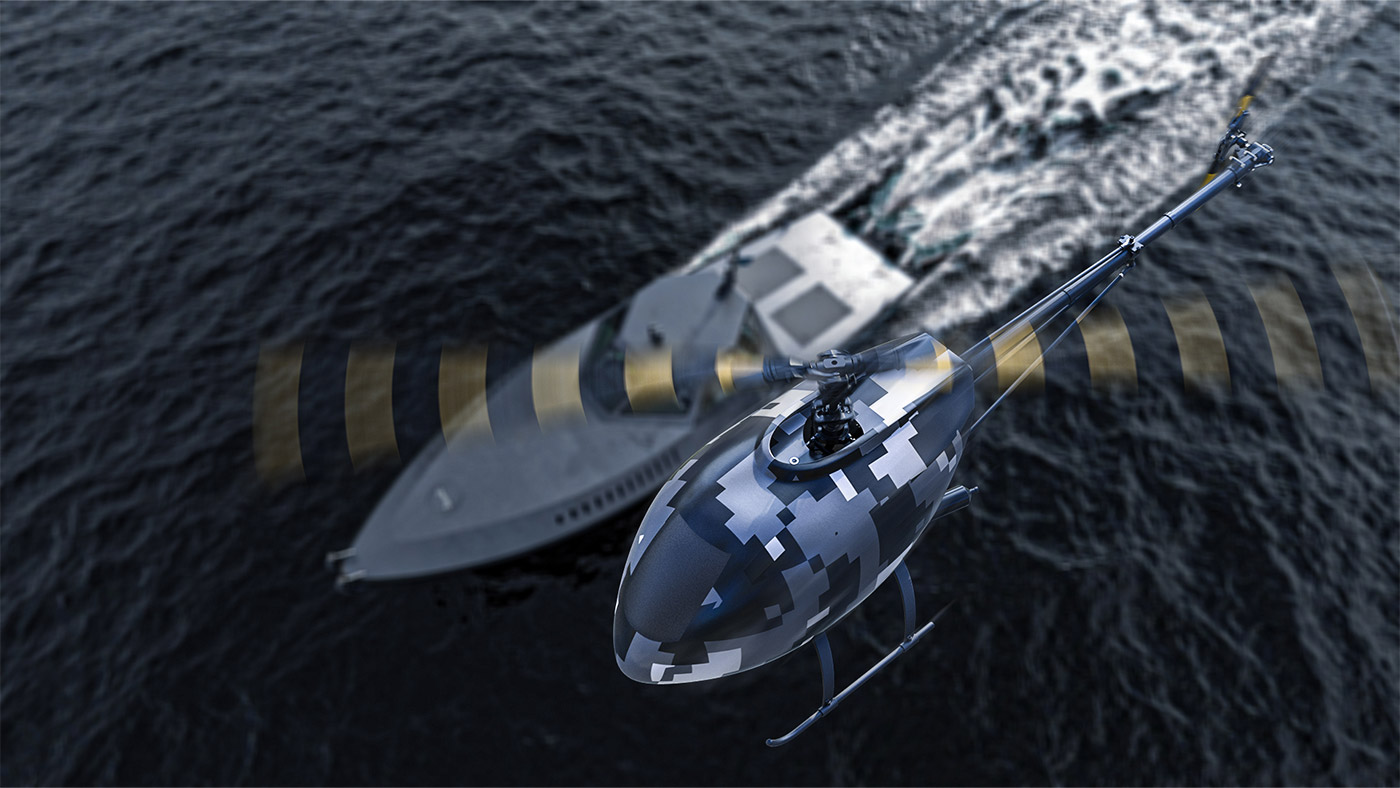

Building on the same autonomous and data-driven capabilities powering our vessels, the SMRPC Swift Multi-Role Payload Carrier extends mission intelligence from sea to sky. Designed for reconnaissance, logistics, and surveillance support, SMRPC integrates seamlessly with manned and unmanned surface platforms for cohesive multi-domain operations.
Experience next-generation situational awareness and self-piloting autonomy in action.
