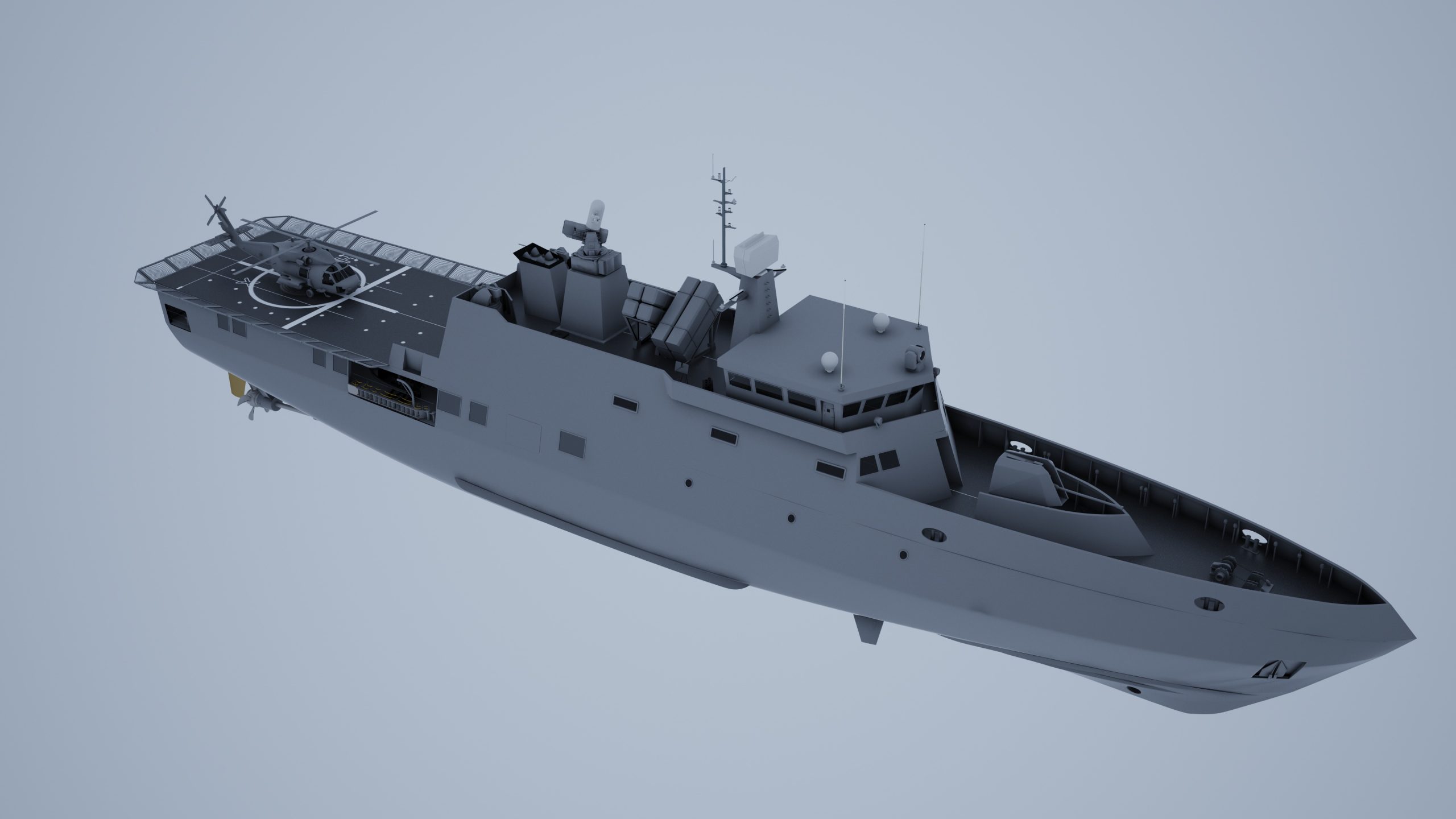

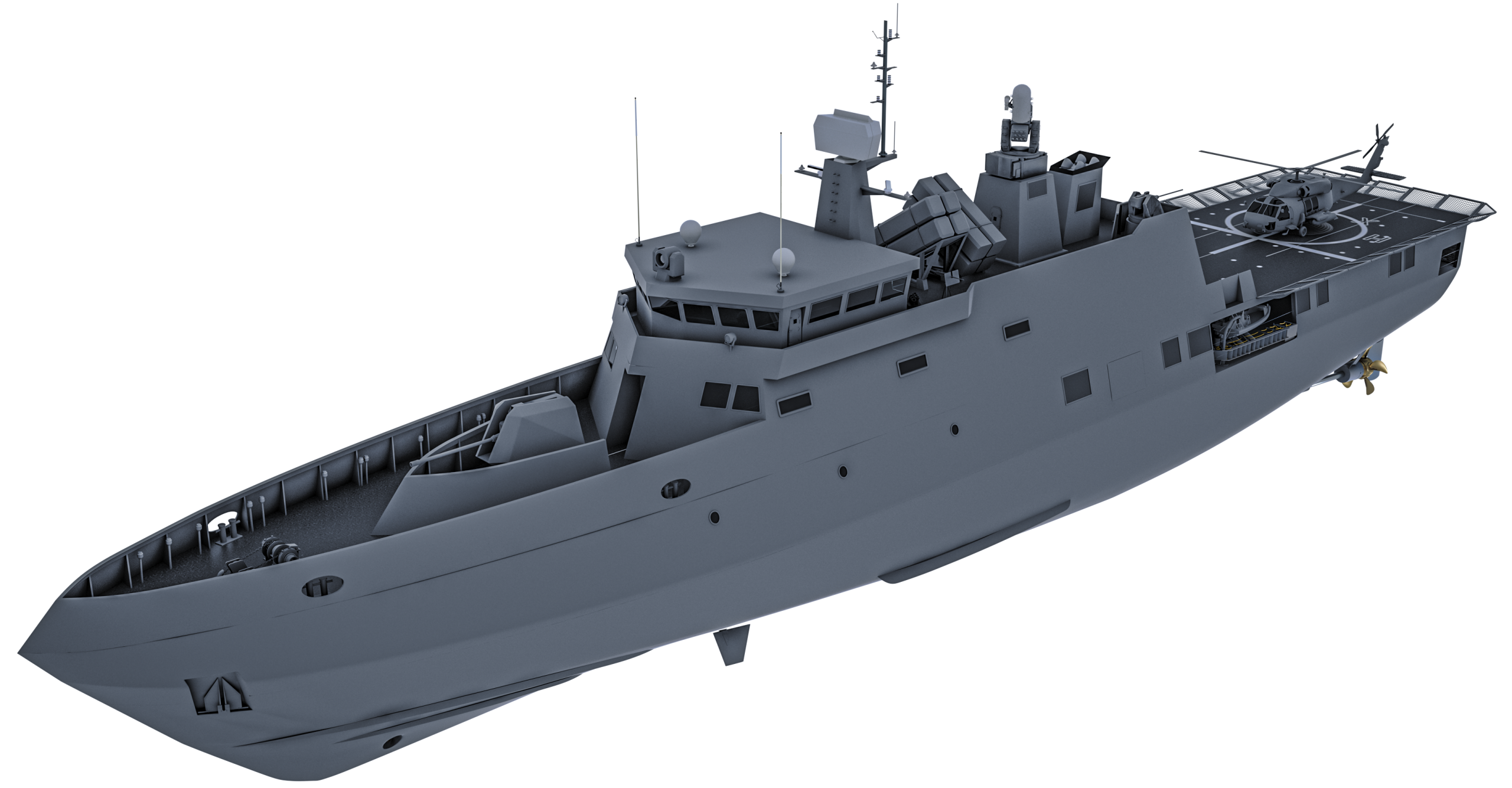

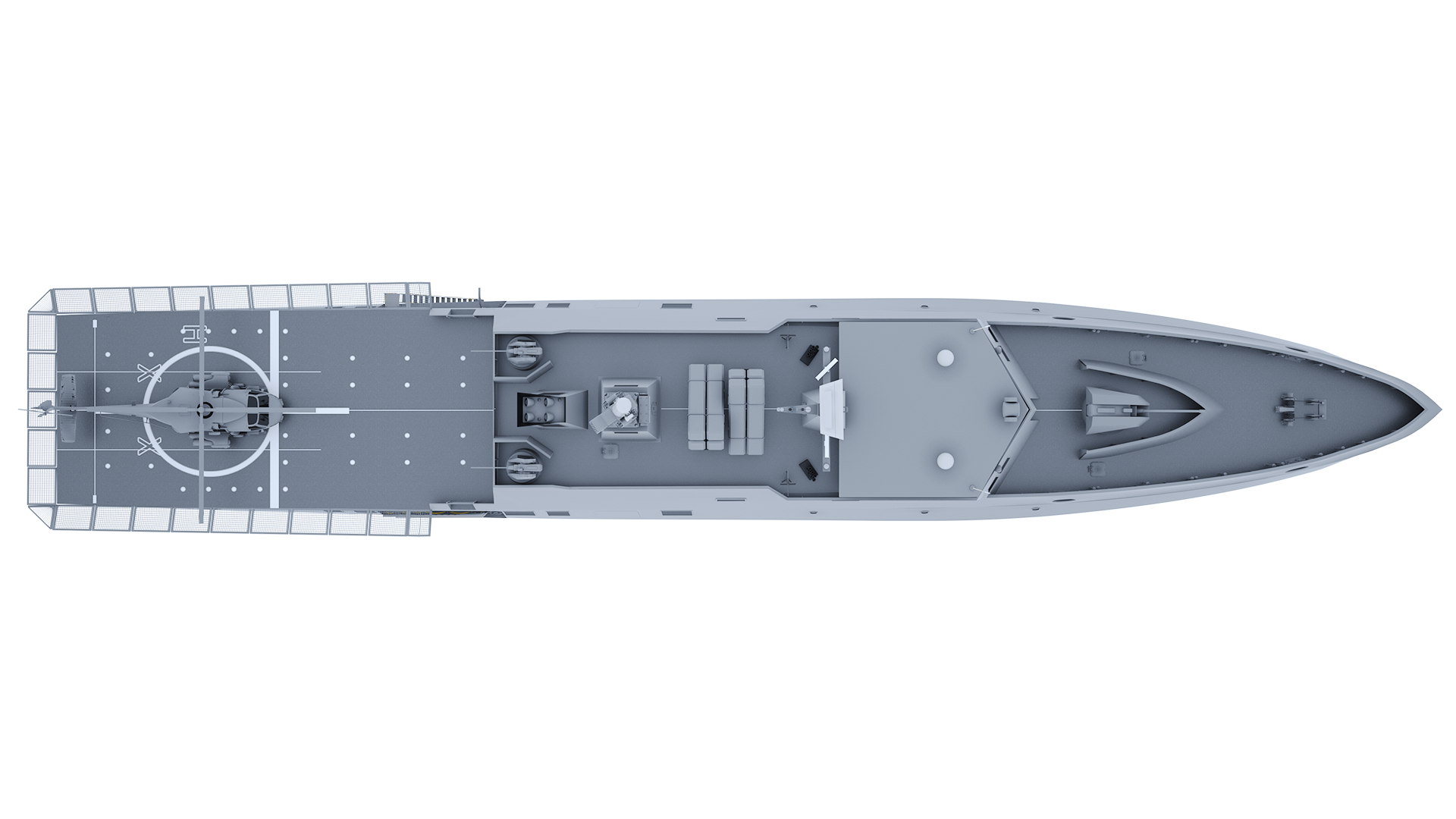

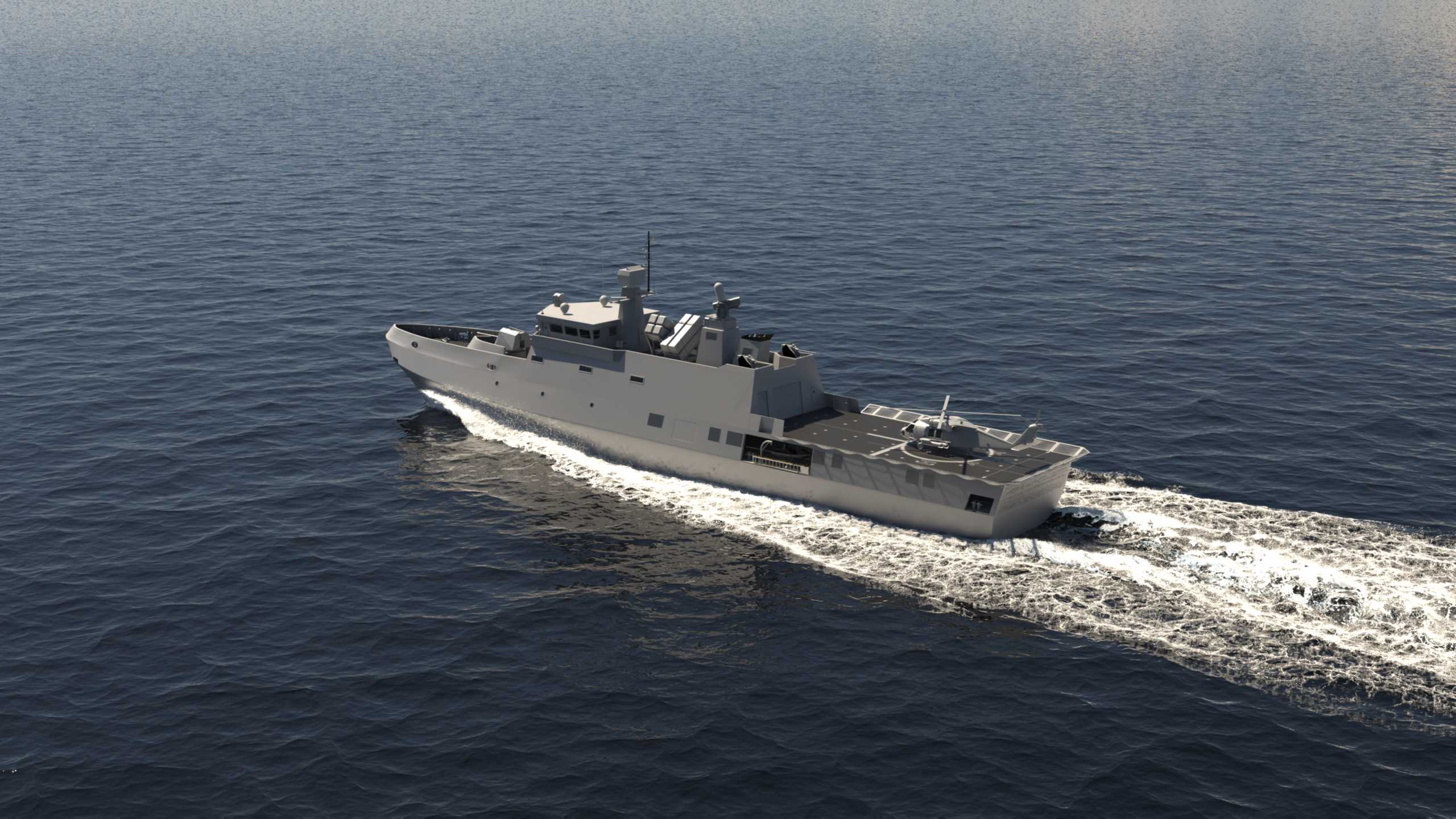

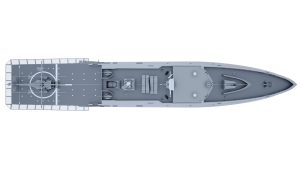

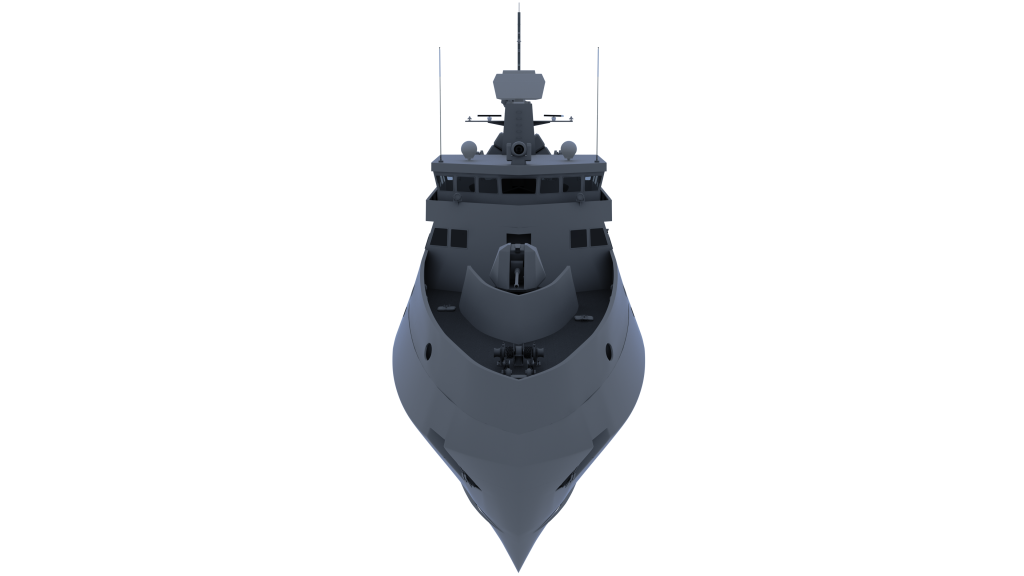

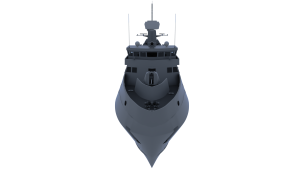

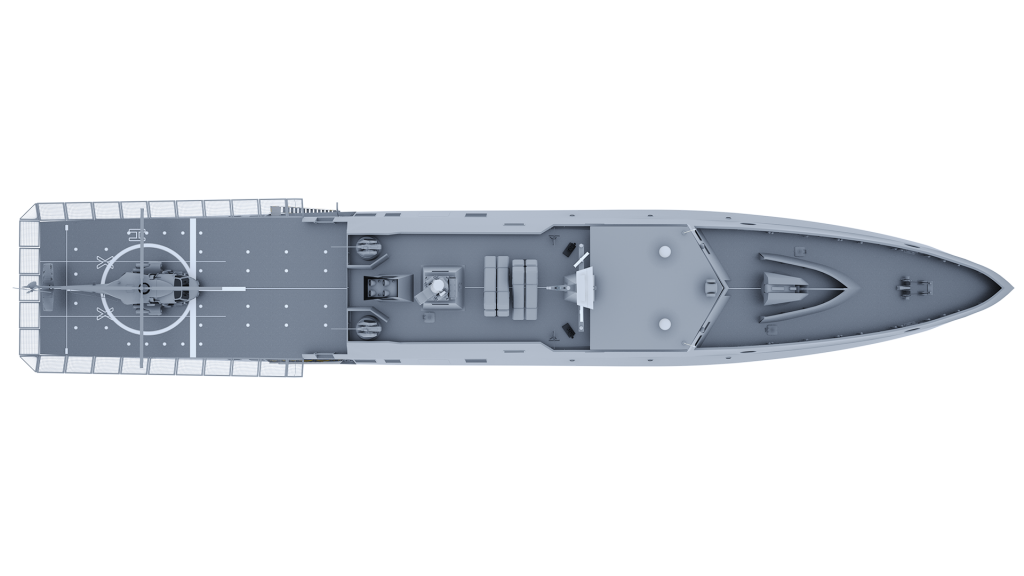

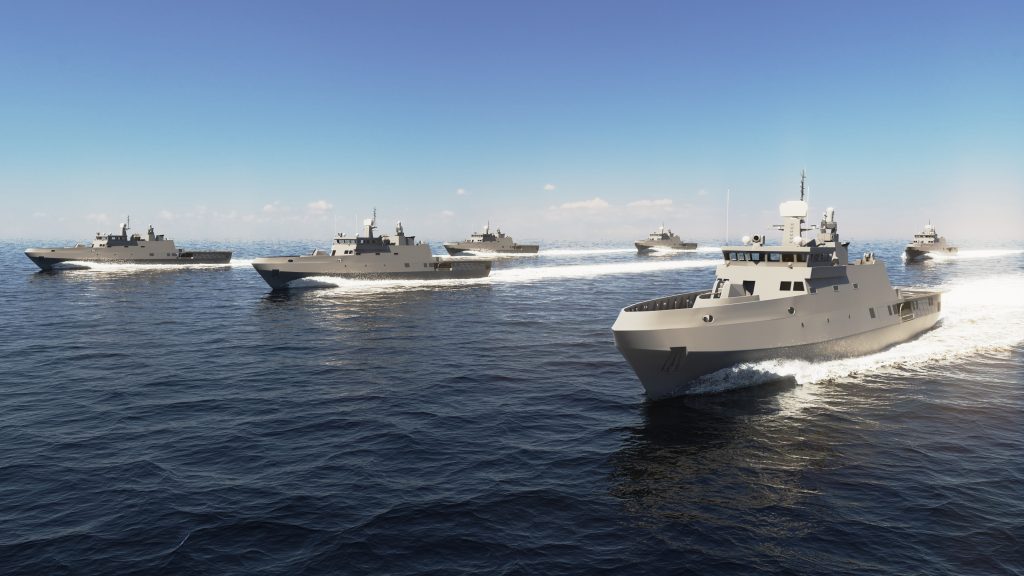

Swiftships’ 75M Corvette provides an outstanding balance of oceangoing capabilities, firepower and rotary-wing support. The 75M Corvette can be primarily used in coastal defense, surveillance missions and maritime patrolling, as well as secondary roles including humanitarian and disaster relief. Its innovative design enables the best performance in terms of maneuverability, speed, fuel consumption and endurance, while maintaining higher degrees of stability and seakeeping. The 75M Corvette is armed with the latest surface weaponry and electronic warfare, while preserving the capability for future growth with antisubmarine weapons.
@normal load
@15 knots
Maneuverable and stable design paired with advanced weapon system

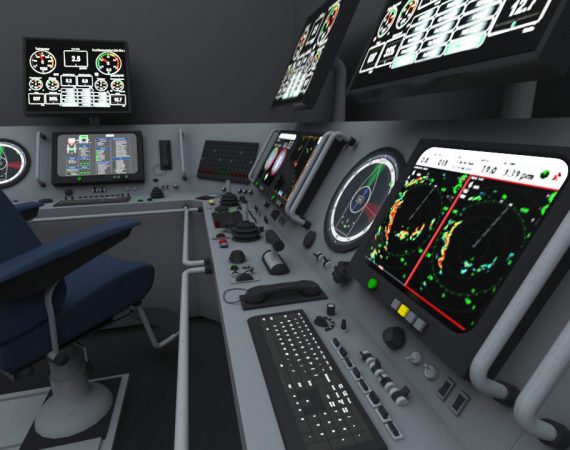

State-of-art electronics and navigation. Autonomy systems can be integrated for unmanned and minimally manned operations
State-of-art electronics and navigation. Autonomy systems can be integrated for Littoral operations

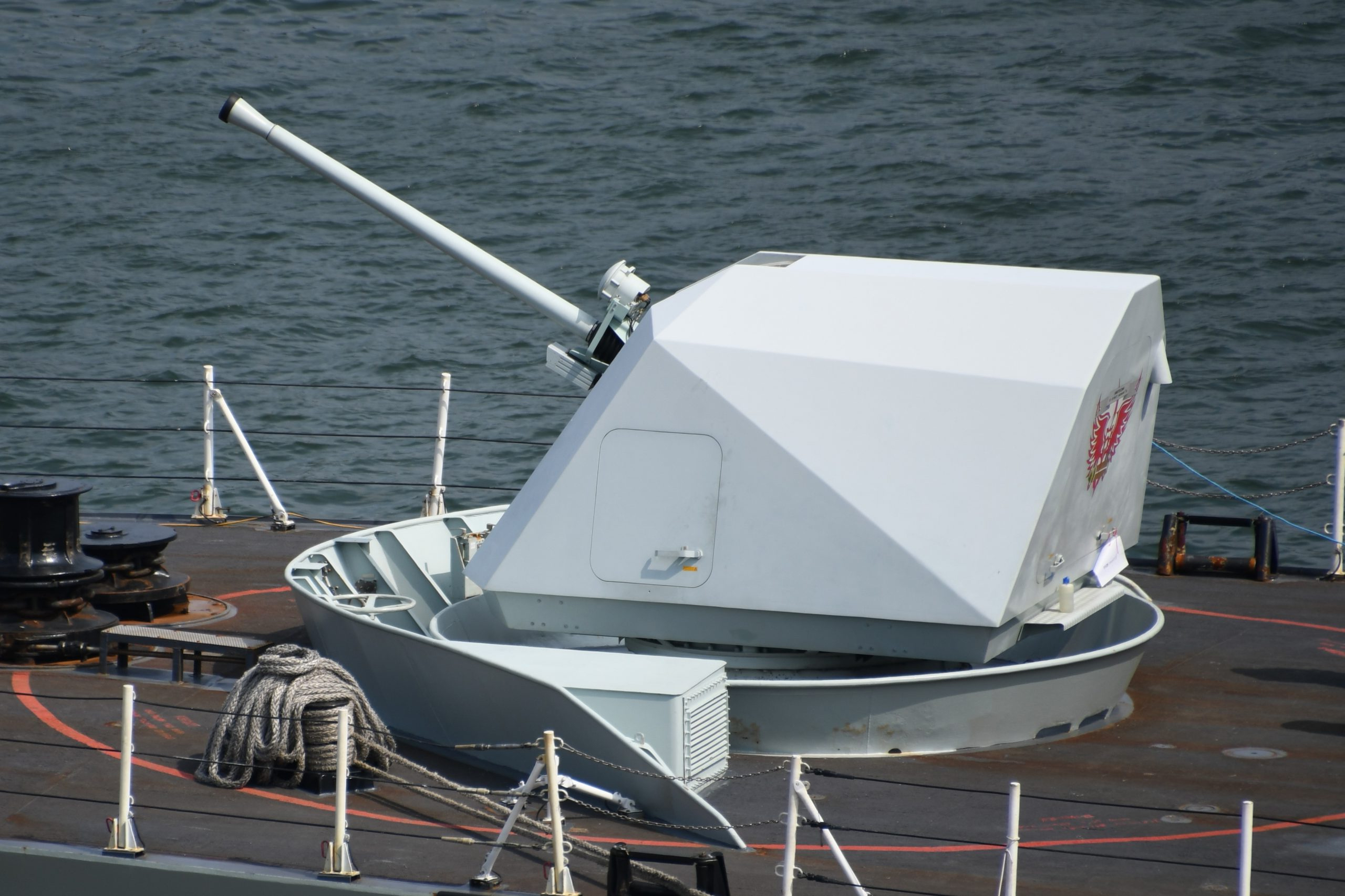

1 X 76mm Naval Gun (BOW)

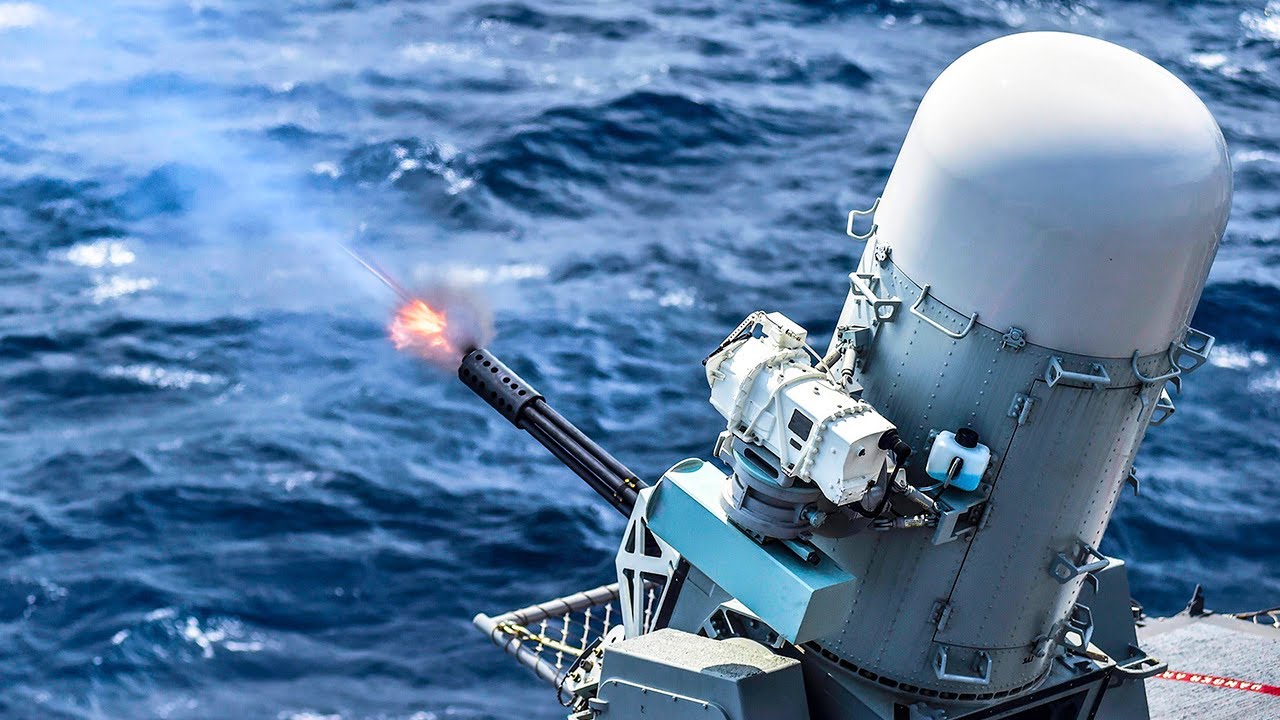

20 mm Close-in Weapon System

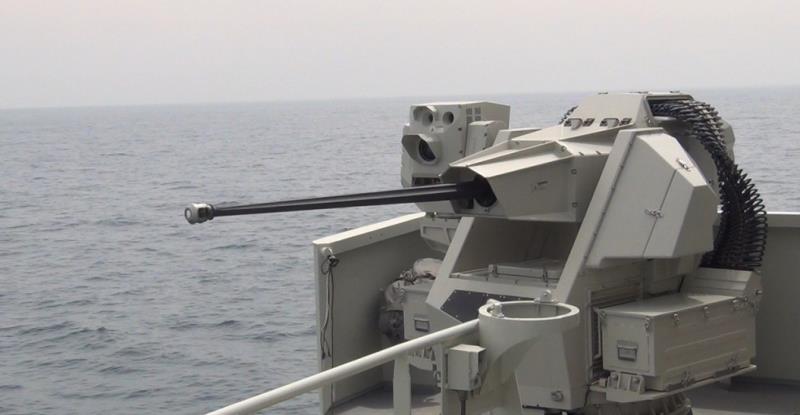

2 x 30 mm Stabilized Naval Gun System (AFT)

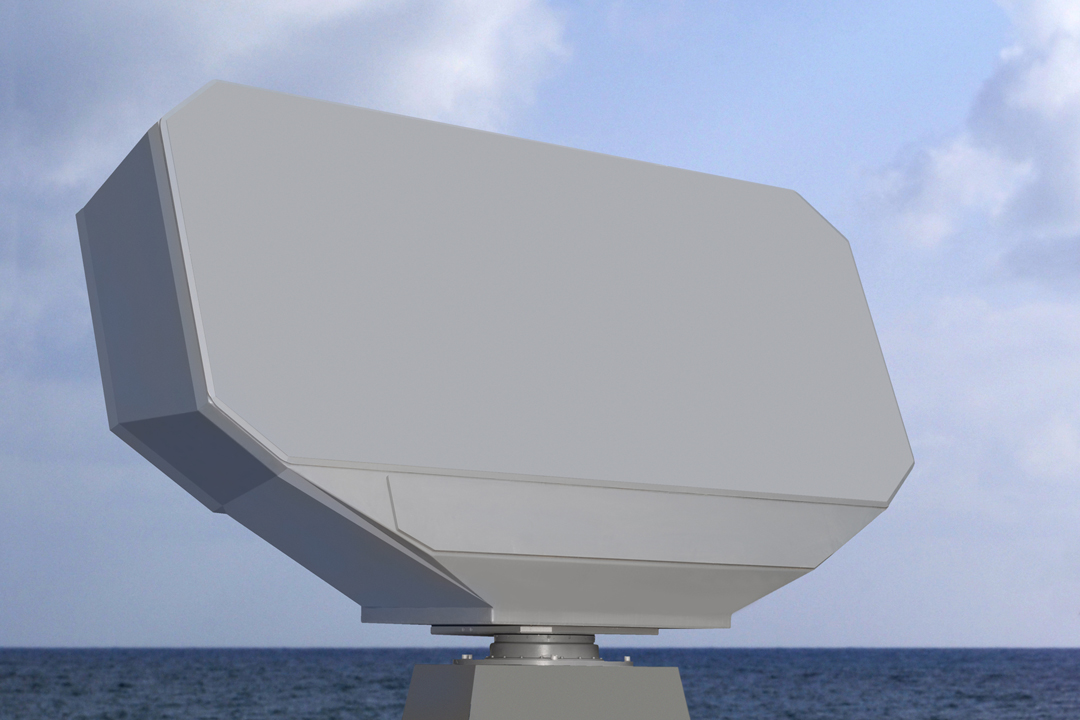

Naval 3D Multimode Surveillance and Target Acquisition Radar

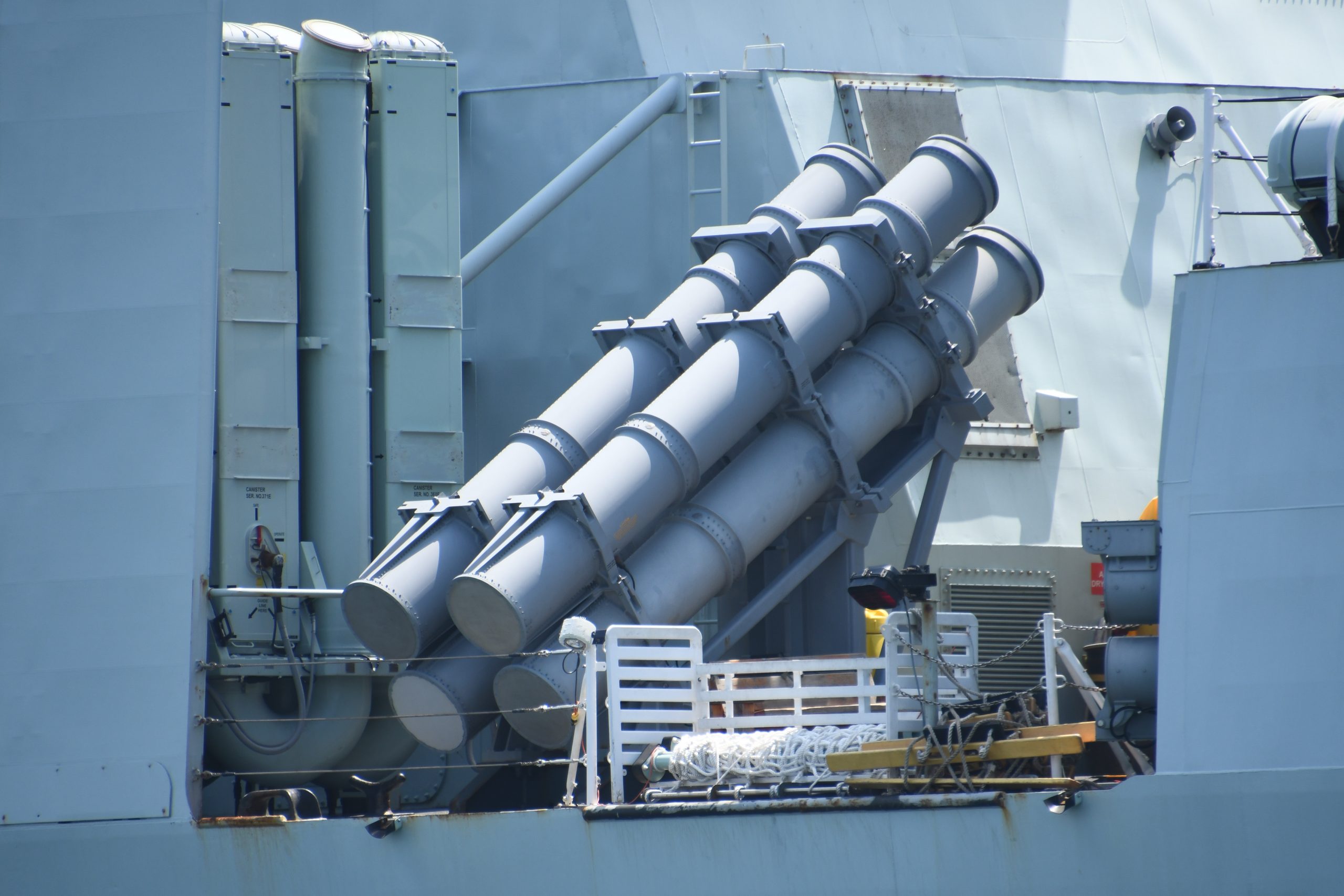

Naval Strike Missile or Harpoon

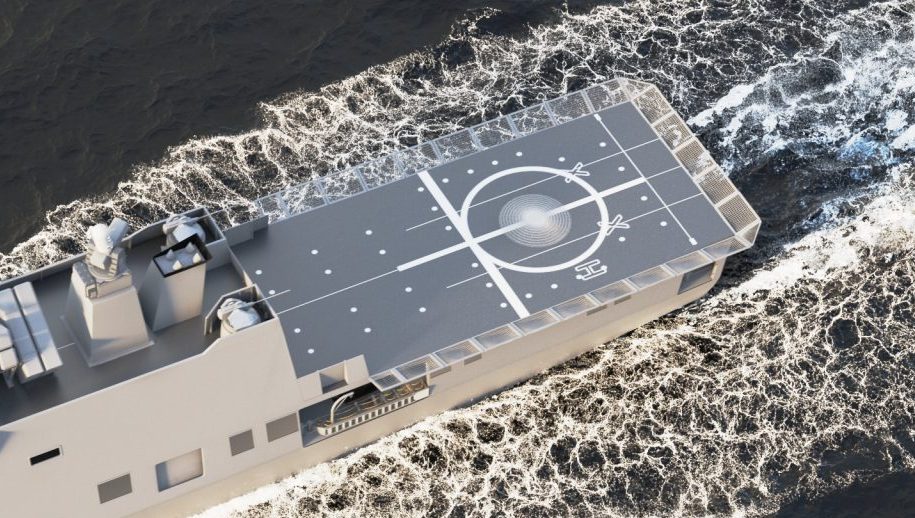

Helicopter Refueling Facilities, Firefighting Foam Monitoring System, Helicopter Visual Landing
4 X MTU 20V 4000 M93L, 4,300 kW @ 2,100 RPM, CODAD Arrangement with 2 x WARTSILA CPP System
Technical Specification |
|
|---|---|
|
LENGTH |
250.5 Feet (76.3 Meter) |
|
BREADTH |
40.9 Feet (12.4 Meter) |
|
WATERLINE LENGTH |
229 Feet (69.8 Meter) |
|
DEPTH |
18.6 Feet (5.6 Meter) |
|
DRAFT |
9.10 Feet (3 Meter) |
|
DISPLACEMENT |
1,250 LT |
|
SPEED |
29 knots |
|
RANGE |
> 5,000 n.m. (@ 15 knots) |
|
MACHINERY |
|
|
NAVIGATION & COMMUNICATION |
|
|
ARMAMENT |
|
|
SHIP SYSTEMS |
|
|
ACCOMMODATIONS |
|
We design, build, integrate, and maintain naval vessels for multiple missions: from border protection to lower-intensity threat missions and high-demand or high-threat law enforcement scenarios.
Minimally Manned and Unmanned Platforms
Autonomous vessels are nothing short of the future of modern naval warfare, simultaneously projecting power, meeting critical humanitarian needs, and heightening the level of security in maritime infrastructures across the globe. At the forefront of modern naval warfare and innovation is Swiftships, a company that has been manufacturing highly specialized military surface vessels for over 80 years.
Critical to Swiftships’ success is its highly developed infrastructure and knowledgeable personnel that allows the company to adapt and innovate in the quickly evolving dynamics of the naval industry and its needs for autonomous capability.
Of course, we can build your vessels in our location! But if for some economic or strategic reasons, you choose vessels’ construction at your location – Swiftships can provide you with full support. We have extensive experience working with international clients on co-production programs, and we offer customized solutions to meet your needs.
