6 METER
S3-HP: SEA-STALKER (S3-HP)
High-Performance USV
Hunter-Killer for Asymmetric Dominance
Cyber Hardened
Overview

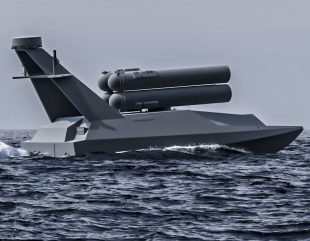

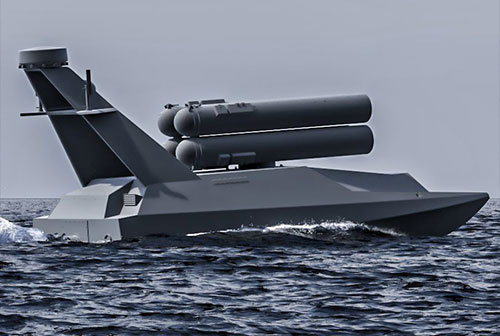

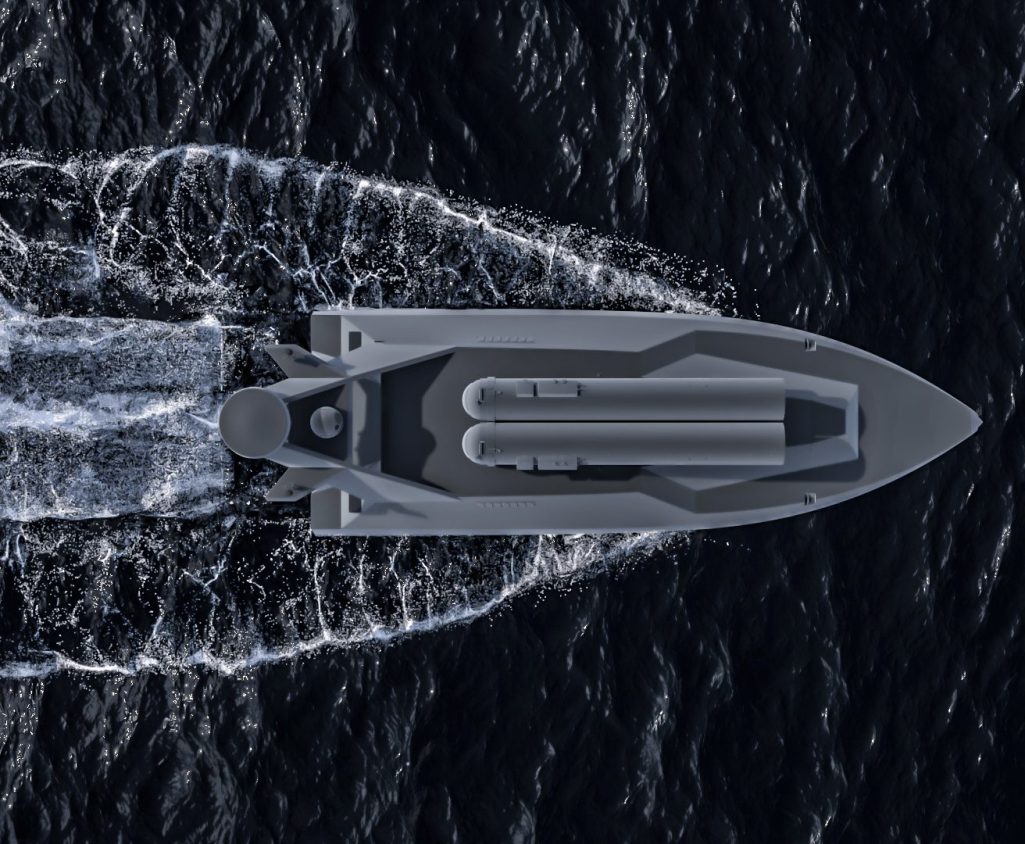

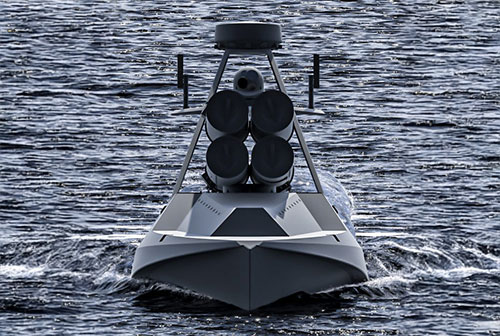

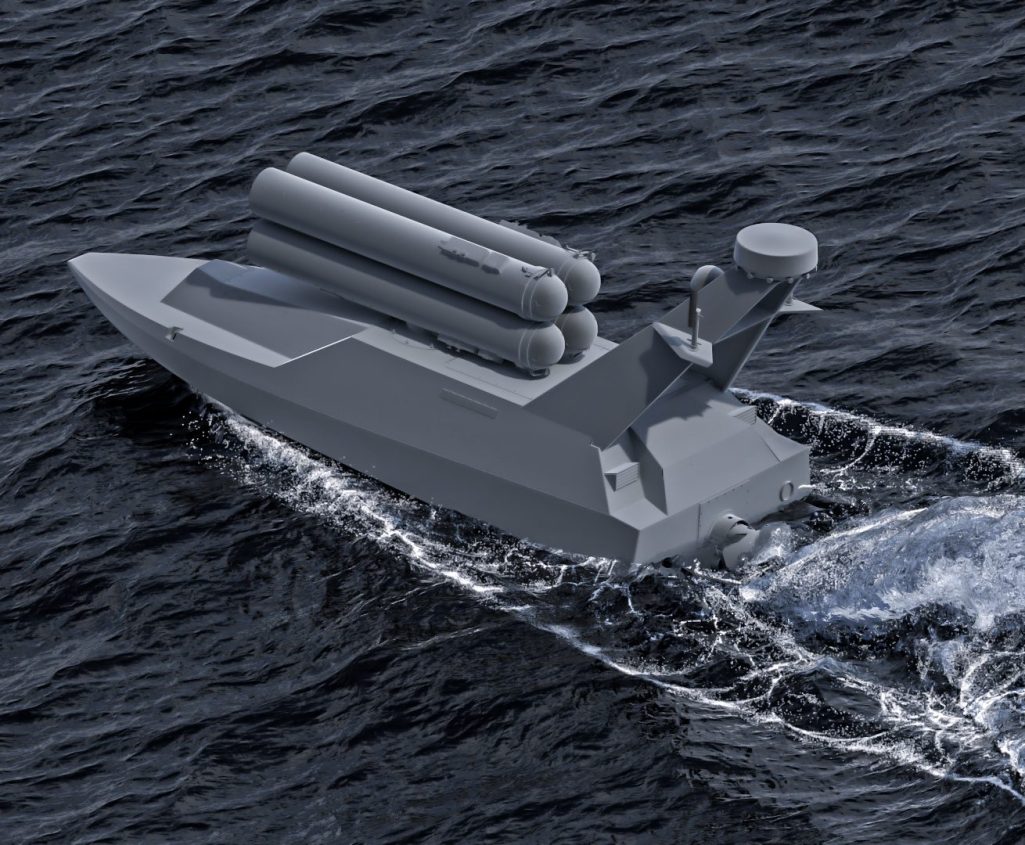

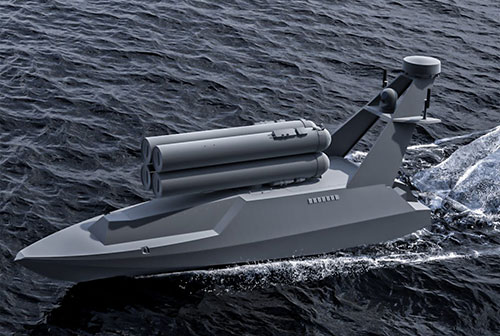

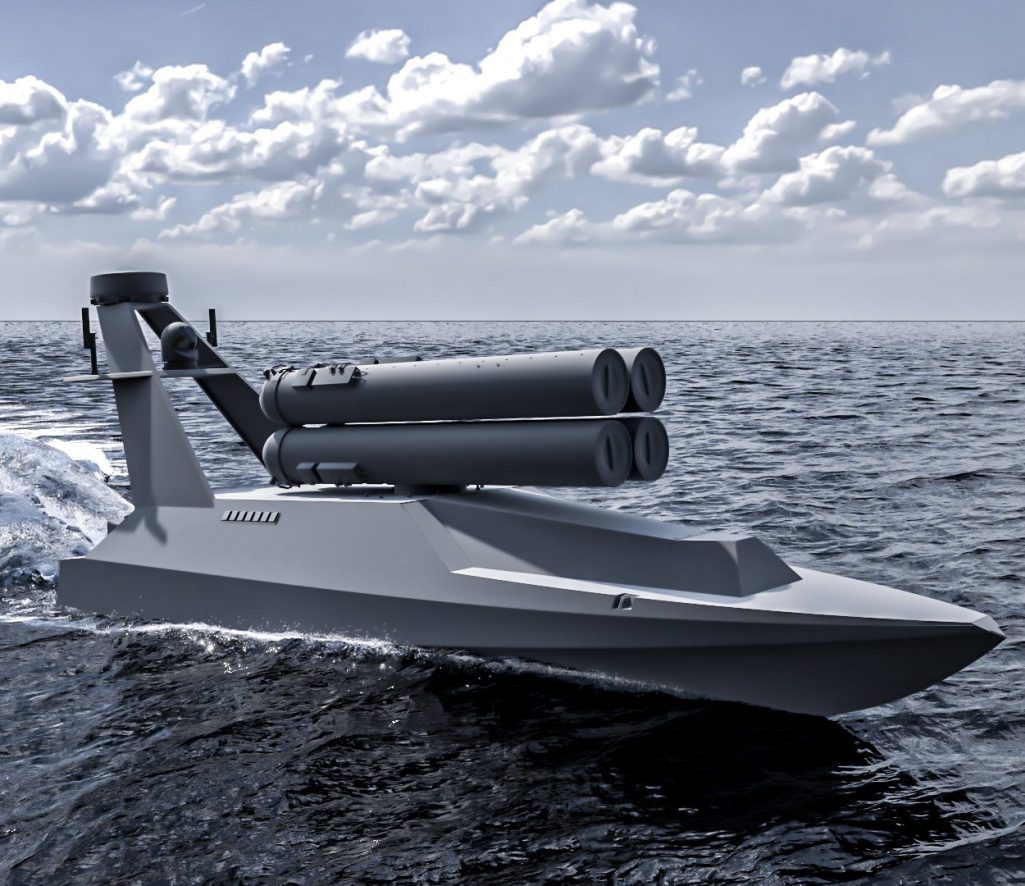

The S3-High Performance (S3-HP) is an Unmanned (Remote or Autonomous) Small Unmanned Surface Vehicle (sUSV) with high endurance, robust aluminum hull, heavy-duty Indmar gasoline engine with water-jet-based propulsion, and a Seakeeper 1 gyro-stabilizer.
The S3-HP is built on the proven S3 design, inheriting its modular open system architecture, plug-and-play command and control (C2), and advanced ISR capabilities, and is enhanced for missions that require agility maneuverability and high speed for ingress and egress.
The S3-HP complies with NATO Standardization Agreements (STANAG) 4586 and the Joint Architecture for Unmanned Systems (JAUS) protocols and is available as a kit or fully assembled.
Key Features

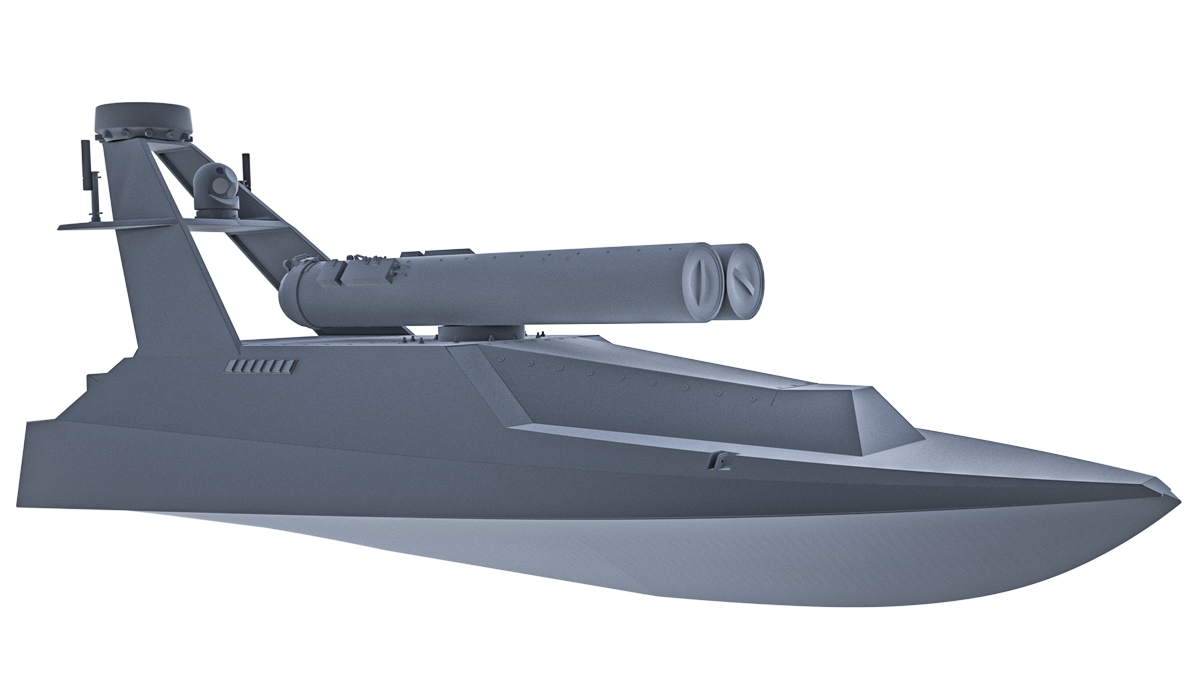

Game Changer – Hunter-Killer USV
NAVIGATING SYSTEM
COLREG Compliant Autonomous Navigation integrated with FLIR, LPI Radar and AIS sensors.
SEAFRAME

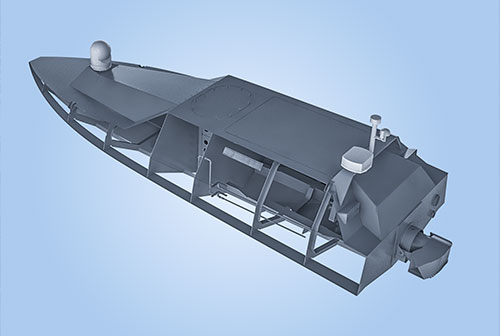

The Hull structure has been designed and validated with Stavitsky’s method to validate performance and durability.
PROPULSION SYSTESM
S3-HP reaches 45 Knots with a range of 1000NM. It features reliable Propulsion system with powerful Indmar 310 HP engine and waterjet.
POWER GENERATION
DC system to provide starting power to the main engine, electronics, sensors and weapon systems. Charging via engine driven alternators or separate generator for EW payloads.
DIAGNOSTICS AND RESPONSE
Remote monitoring of Machinery diagnostic data and vessel parameters
AUTONOMY SOLUTION
Capable of Navigational and Full Mission Autonomy with Man in the Loop. Level of automation up to Level 5.
COUNTER USV
S3-HP is designed to overtake and intercept adversary’s USVs in order to protect own fleet or escort High Value Units (HVUs) in high risk littoral environments
Technical Specification
|
|
|
|---|---|
|
LENGTH
|
20 ft (6.1 Meter) |
|
BEAM
|
6 ft (1.82 Meter) |
|
DRAFT
|
1-2 ft. (up to .61 Meter) |
|
RANGE
|
800-1000 NM |
|
FUEL CAPACITY
|
200 Gallons (757.08 Liters) |
|
SPEED
|
45+ Knots |
|
WEIGHT (Total)
|
3,000 lbs. (1360.8 kg.) |
|
ENDURANCE
|
5 days @ 4-5 knots |
|
MACHINERY
|
|
|
SENSOR / ELECTRONICS
|
|
|
ARMAMENT
|
|
|
OPTIONS
|
Our S3-HP can be outfitted with a modular payload. The onboard sensor and communication systems allow for autonomy and situational awareness (optional/GFE) |
|
OTHER
|
|
